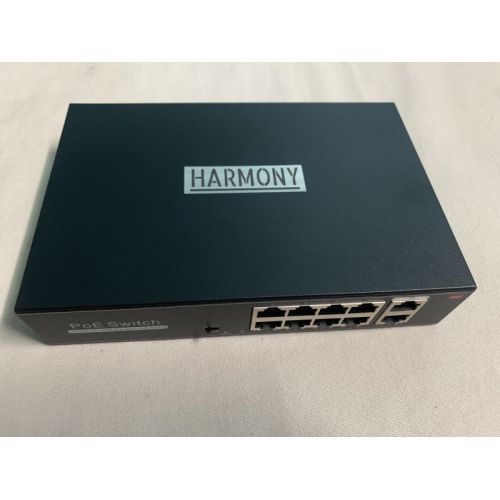

HARMONY 8 Port PoE Switch HL-P82-B1

The HL-P82-B1 is a 10 Ports Switch with 8 PoE Ports & 2 Uplink Ports. Here are the specifications:

Network Ports:

• 8, 100Mbps; RJ45 ports; Max. 30W Output of Single PoE Port Transmission distance: 0~250m

Uplink Ports:

• 2, 100Mbps; Transmission Distance/Default 0-100m

Switch Capacity:

• 2 Gbps Full Duplex

Forwarding Rates:

• 0.1488 Mbps/port

PoE Standard:

• IEEE802.3i/802.3u/802.3x

PoE Power Supply:

• 1/2(+),3/6(-)

Transmission Distance:

• 0-100m/100Mbps; Max. 250m/10Mbps via Cat.5e or more under Extend mode

MAC Address List:

• 2k

Lightning Protection:

• n/a

PoE Power Budget:

• 96W

ESD Protection:

• Air discharge: 1.5KV
• Contact discharge: 1.5KV

Power Consumption:

• <5W

LED lights:

• Light on: Powering
• Light off: No Power
• DIP SWITCH Light on: VLAN mode & Extend mode
• Light off: normal mode

Power Source:

• Input: 110-264V AC, 50/60Hz

Power Light:

• Green light flash slowly: Searching for device
• Red light on: Powering but data disconnected
• Green light flash quickly: Data Transmitting

Working Temperature:

• -10°C ~50°C

Humidity:

• 10% - 95%, non-condensing

Storage Temperature:

• -40°C ~70°C

Dimension:

• 202mm x 140mm x 45mm
